Parameter
|
CPU
|
?10th Gen Intel?Core? i3 i5 i7 processor
|
|
Memory
|
DDR4 2400MHz? memory Max 32GB
|
|
Storage
|
Built-in 1*M.2 PCIE interface supports NVME and SATA double protocol; 1*MSATA adaptive hard disk interface
|
|
GPU
|
Intel? UHD Graphics 620
|
|
Display
|
HDMI/DP? Support synchronous and asynchronous dual display
|
|
Network
|
LAN
|
Intel I219 10/100/1000M adaptation
|
|
WIFI
|
Built-in 1*M.2 expansion slot, support WiFi(2.4GHz+5GHz)+BT4.2
|
|
Audio
|
Realtek ALC887 hd audio 5.1 channel
|
|

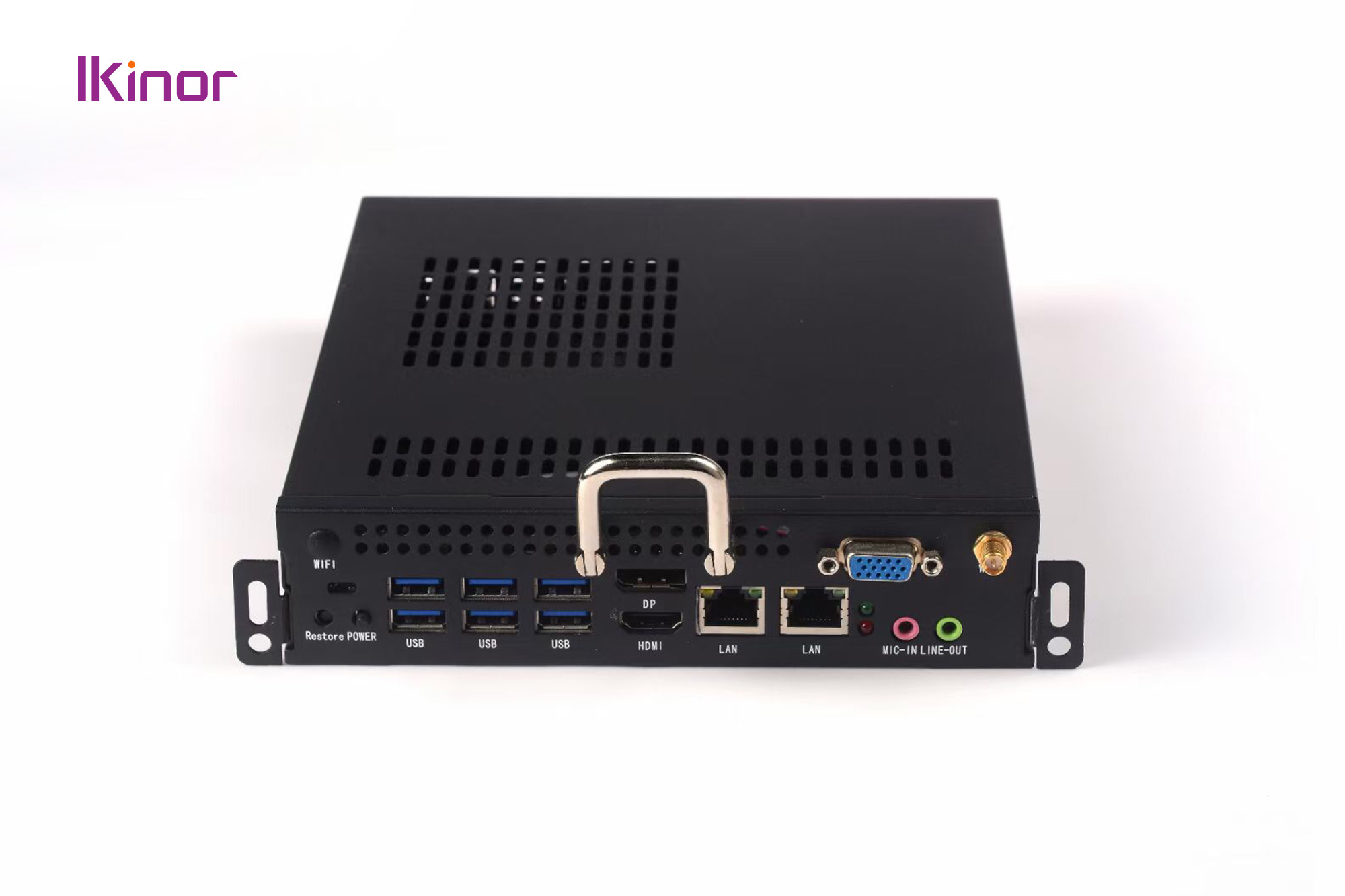

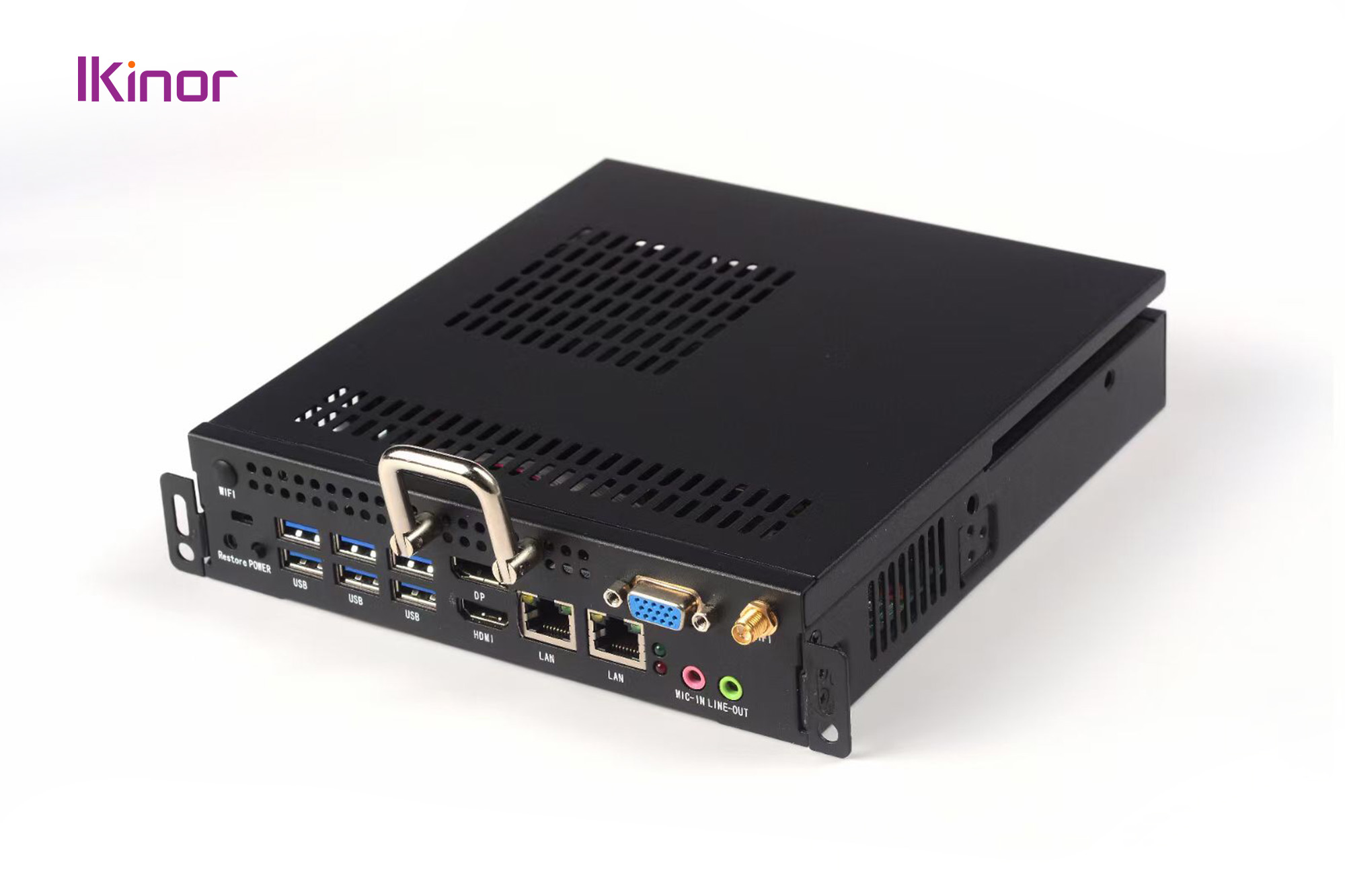

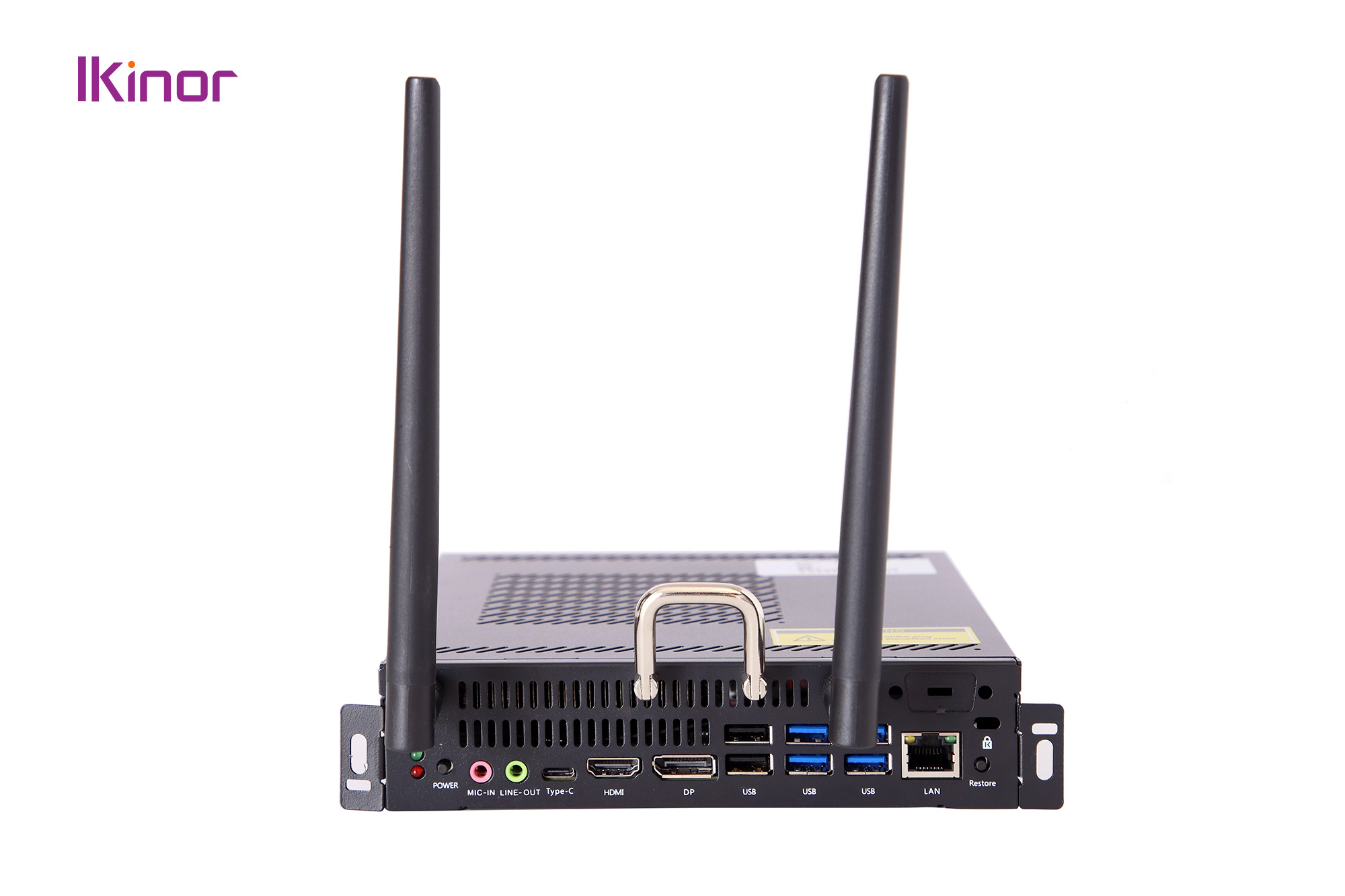

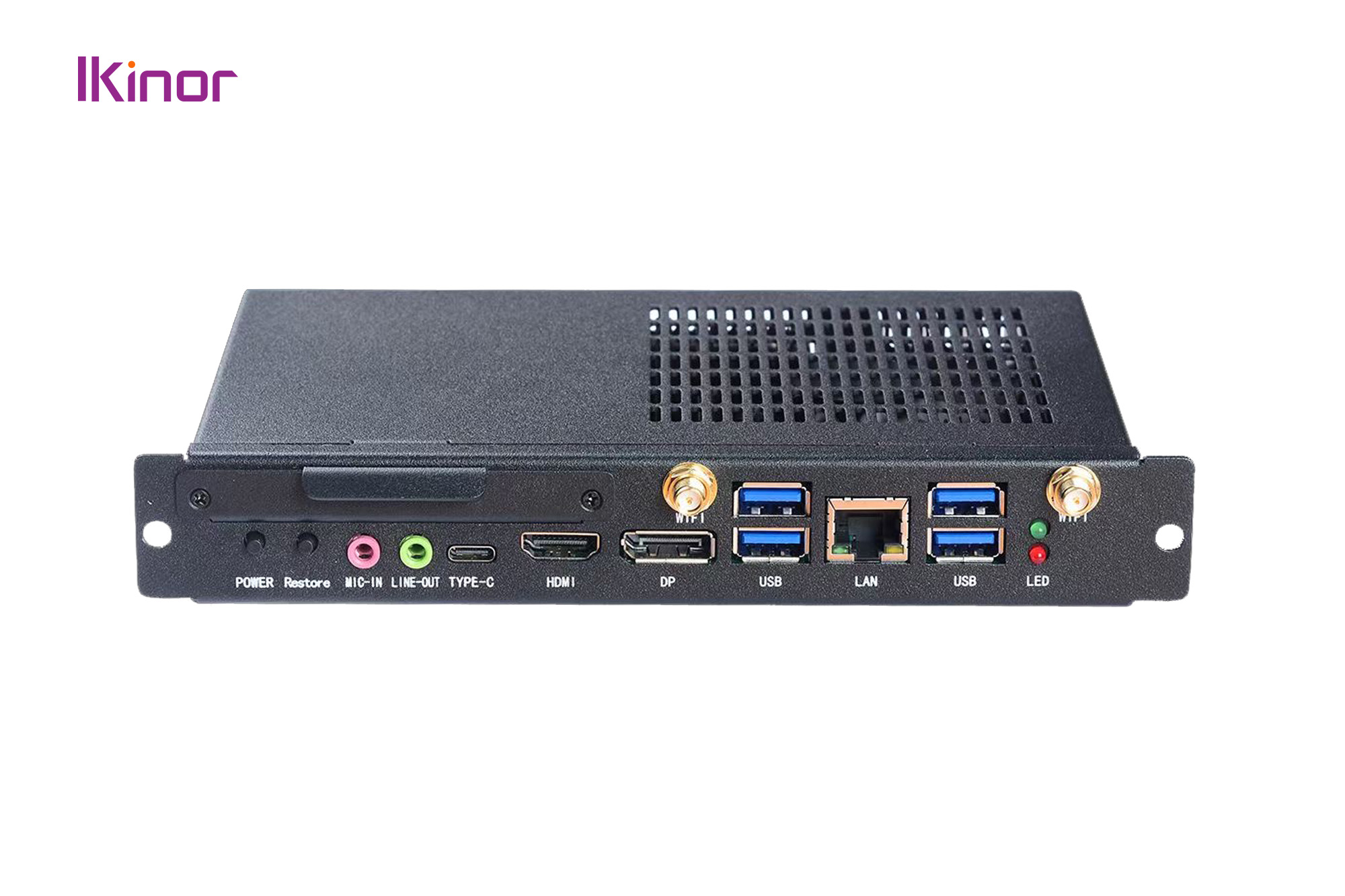

I/O
|
Switch panel interface
|
1*HDMI? 1*DP 1*Type-C? 4*USB3.0? ??1* LAN?? 1*POWER??? 1* Reset；? 1*line out+mic
|
|
Power
|
Input
|
19V4.7A or 12V5A
|
|

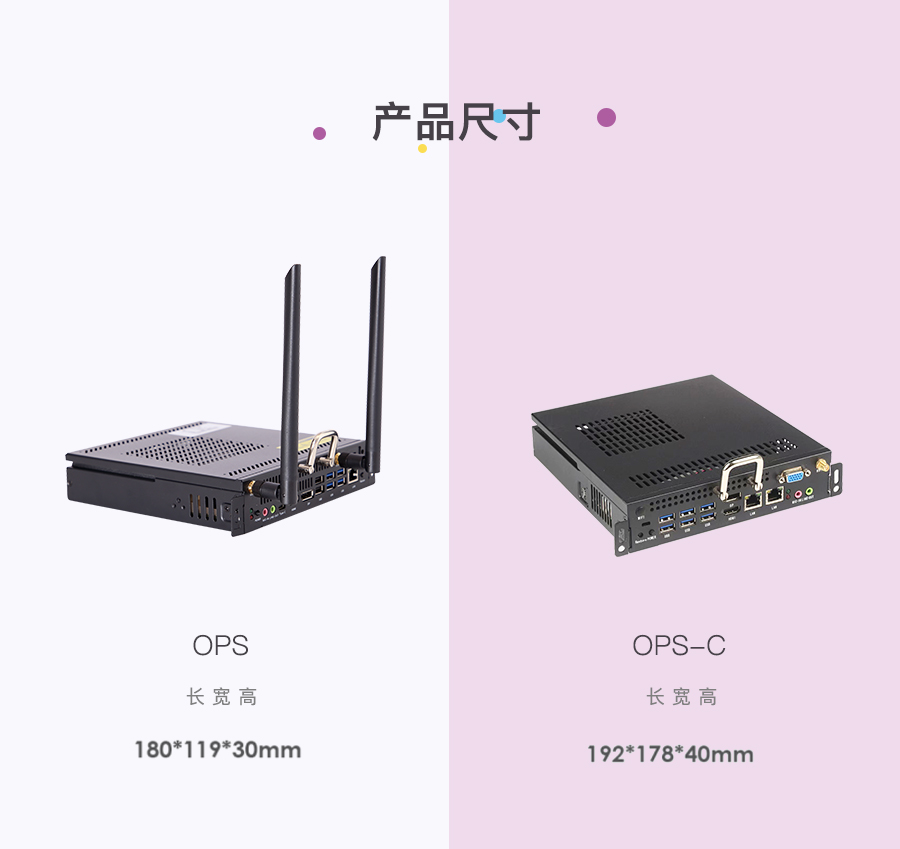

Size
|
Host（mm）
|
The bare: 118*180*30mm
|
Packing cases：265*226*90mm
|
|
Weight（Kg）
|
Net weight≈0.8 Kg????????????????????????? Gross weight≈1Kg
|
|
Temperature & Humidity
|
Working temperature
|
0°C~ 45°C
|
|
Storage temperature
|
-40°C~ 80°C
|
|
Working humidity
|
10% - 95% @40°C? No condensation
|
|
OS
|
Supported OS
|
Windows 7/8/10, Linux
|
?
